Custom Mould Parts & Precision Components, Built to Your Drawings
XXmold manufactures custom die components, carbide punches, wear parts and precision mould parts for demanding industrial buyers worldwide. Send a drawing, sample or reference code — our engineers turn it into a stable, repeatable part with European / Japanese quality, at a China cost advantage.
The high-end capability of Europe & Japan, at a China cost advantage
Custom tooling is a high-stakes purchase. Here is why procurement teams and mould makers trust us with parts they cannot afford to get wrong.
High-End Technical Capability
We run China's best precision-tooling processes — CNC machining, wire & sinker EDM, jig grinding and profile grinding — to hold micron-level tolerances on hardened tool steel and tungsten carbide. The complex geometries and demanding drawings many shops decline are what we build every day.
Lower Cost Than Europe / Japan / Korea
The same drawing, produced to the same specification, typically costs 20-40% less than sourcing in Europe, Japan or Korea — with no compromise on material grade, heat treatment or inspection. You keep the quality and reinvest the savings.
Flexible Lead Times, Your Schedule
Need a rush replacement to keep a line running, or a planned series over months? We flex both ways — expedited single parts in days, and scheduled batch production with reserved capacity. Real-time scheduling keeps your project moving.
Proven Global Custom Experience
Thousands of custom jobs shipped to mould makers, stampers and OEMs across 30+ countries. We read international standards (DIN / ASTM / JIS / GB), speak your technical language and anticipate the details that make a custom part fit and last.
Engineering support from drawing to delivery
A dedicated engineer owns your project end to end — reviewing your drawing, recommending material and process, flagging cost-saving design tweaks, and keeping one point of contact through production, inspection and shipping.
- DFM feedback before you commit — avoid costly tooling mistakes
- Material & heat-treat advice matched to your application
- One accountable contact for even the most complex orders
- Full documentation: dimensional, material & hardness reports

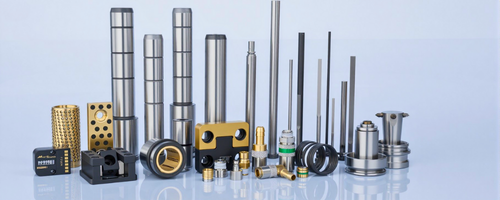

Precision parts we build every day
From a single replacement pin to full progressive-die tooling — machined, hardened, coated and inspected to your specification.

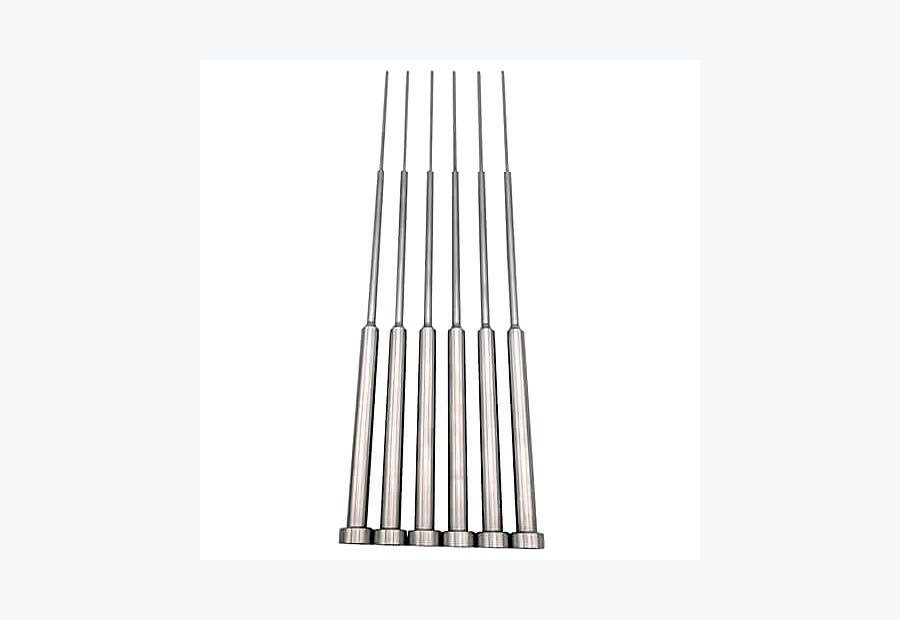

Ejector, Core & Guide Pins
Precision ejector pins, core pins, ball-lock pins, alignment and datum pins ground to tight diameter tolerance for repeatable location and long service life.

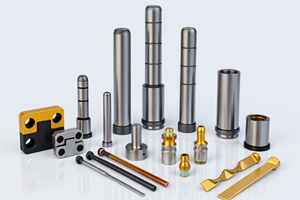

Custom Mould & Die Parts
Replacement and special-structure mould components built from your drawing or sample — sliders, inserts, wear plates and application-specific parts.
Precision Injection Mould Components
Close-tolerance injection-mould accessories with controlled fit, surface finish and dimensional stability for high-cavity tooling.

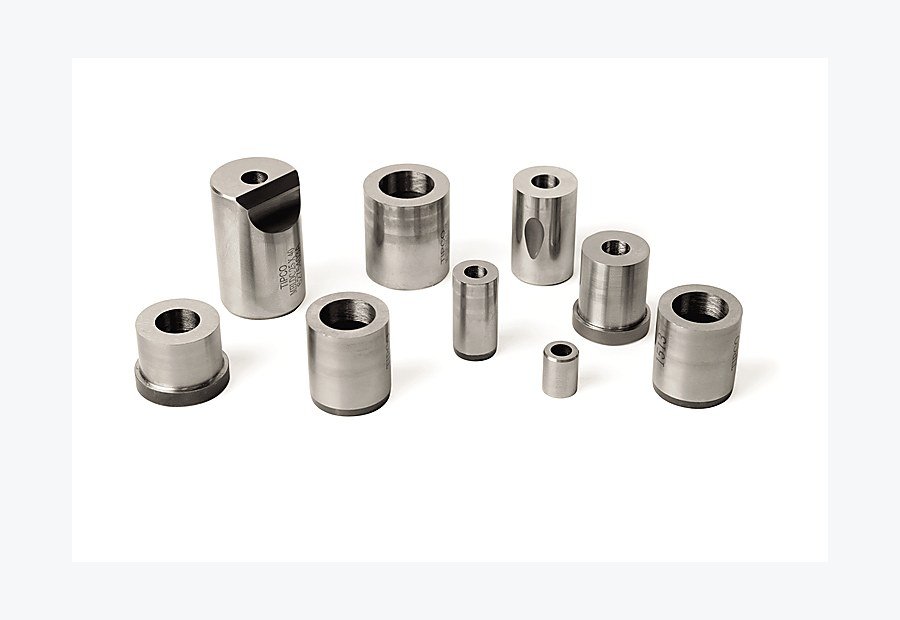

Die Buttons & Bushings
Head-type, ball-lock, counterbore and wire-EDM die buttons in tool steel and tungsten carbide for stamping, piercing and blanking tooling.

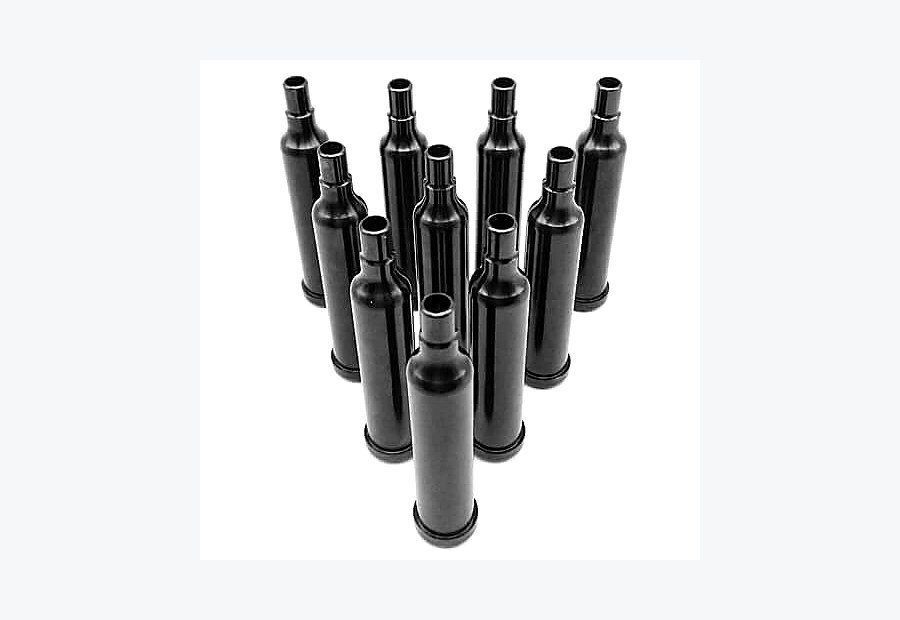

Carbide Punches & DLC-Coated Dies
Tungsten-carbide and HSS punches — head-type, tapered-head, stepped, bottleneck and ball-lock — with DLC, TiN, TiCN or AlTiN coatings for abrasive, high-wear work.

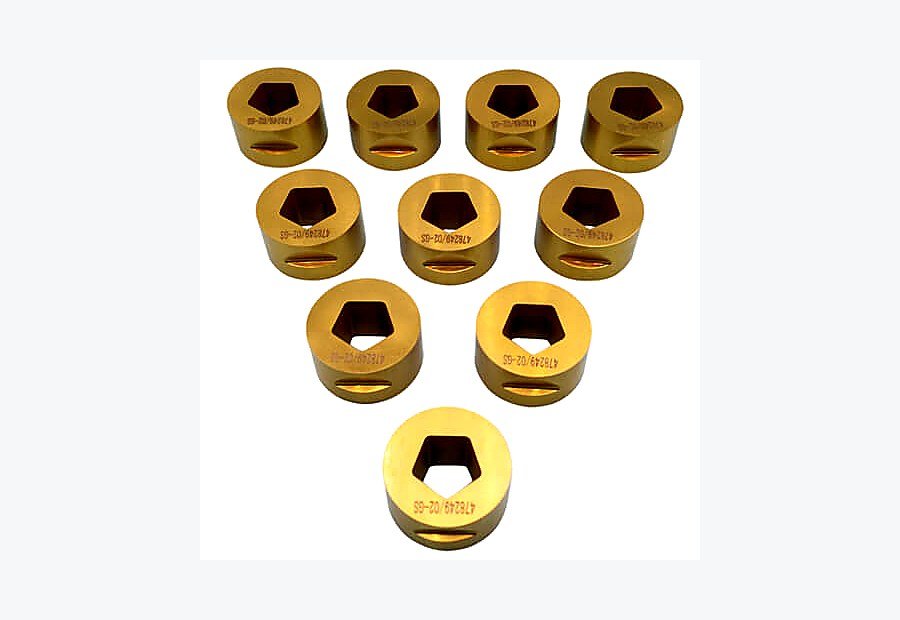

Trimming & Cold-Forming Dies
Trimming dies and cold-forming tooling engineered for wear resistance and dimensional accuracy in high-volume stamping and forming lines.
A controlled 7-stage manufacturing process
Every custom job follows the same disciplined route — so quality is repeatable, not accidental.
Drawing & DFM review
Engineers review your drawing, sample or reference code and advise on material, tolerance and manufacturability before quoting.
Material selection
Certified tool steel, tungsten carbide, stainless or plastics chosen to the DIN / ASTM / JIS / GB grade your part needs.
CNC / EDM / grinding
CNC milling & turning, wire and sinker EDM, jig and profile grinding produce the geometry to micron accuracy.
Heat treatment
Controlled hardening, tempering and stress relief deliver the specified hardness with minimal distortion.
Surface coating
DLC, TiN, TiCN, AlTiN, CrN, nitriding or polishing tuned to the wear and friction demands of the application.
Inspection (CMM)
CMM, optical projector, hardness and roughness testing verify every critical dimension against your drawing.
Packing & global delivery
Rust-preventive protective packing and express, air or sea freight to your door in 30+ countries.
CNC, EDM, grinding, heat-treat & coating under one roof
Keeping the full process in-house means tighter tolerance control, shorter lead times and full traceability — no quality lost between subcontractors.
- CNC milling & turning, wire & sinker EDM
- Jig grinding & profile grinding to micron accuracy
- Controlled heat treatment with minimal distortion
- DLC / TiN / TiCN / AlTiN / CrN coating options
Technical data for specifying engineers
Full DIN / ASTM / JIS / GB steel cross-reference and PVD/CVD coating characteristics — so you can specify the exact grade and surface your part needs.
| Parameter | TiN | TiCN | TiAlN | CrN | WC/C | ALCRONA |
|---|---|---|---|---|---|---|
| Microhardness | HV2000 | HV3000 | HV3000-3500 | HV1800 | HV1400 | HV3200 |
| Friction factor | 0.4 | 0.3-0.4 | 0.4 | 0.50 | 0.10 | 0.35 |
| Coating thickness | 2-4 µm | 2-4 µm | 2-5 µm | 2-6 µm | 1-4 µm | 2-4 µm |
| Color | Gold | Grey | Dark purple | Silver white | Black | Dark purple |
| Max working temp. | 550 °C | 400 °C | 850-1000 °C | 700 °C | 300 °C | 1100 °C |
| Processing temp. | 400-450 °C | 400-450 °C | 400-450 °C | 400 °C | 250 °C | 400-450 °C |
| DIN | ASTM | JIS | GB | Characteristic | Typical application |
|---|---|---|---|---|---|
| 1.2344 | H13 | SKD61 | 4Cr5MoSiV1 | General hot-work die steel | Die-casting mold, extrusion & injection mold, ejector pins |
| 1.2344+S | H13+S | FDAC | 4Cr5MoSiVS | Hot-work die steel with good machinability | Die-casting mold, extrusion & injection mold, ejector pins & sleeves |
| 1.2379 | D2 | SKD11 | Cr12Mo1V1 | High wear resistance & toughness, low heat-treat deformation | Punches |
| 1.2842 | O2 | 9Mn2V | Low heat-treat deformation, easy to forge & anneal | Punches & dies, block gauge, measuring tools | |
| 1.2363 | A2 | SKD12 | Good corrosion resistance, strong ductility, good impact & wear | Punching die, cold-forming die, punches | |
| 1.251 | O1 | SKS53 | 9Mn2V | Good hardenability, wear resistance & toughness | Small-deformation, long & complex cutting tools |
| 1.2516 | WV | High toughness, impact resistance, good machinability | Punches, ejector pins, molding tools | ||
| 1.2210 | T12CrV | High toughness, impact resistance, good machinability | Punches, ejector pins, molding tools | ||
| 1.2311 | P20 | Good machining performance & toughness | General pre-hardened plastic mold steel | ||
| 1.2312 | P20+S | Better machinability than 1.2311 | General pre-hardened plastic mold steel | ||
| 1.2738 | P20+Ni | High hardenability & polishing property | Complex & precision plastic mold | ||
| 1.2316 | Good corrosion resistance & polishing property | High-acidity-resistant mold | |||
| 1.3343 | M2 | SKH51 | W6Mo5Cr4V2 | High hardness & toughness, good wear resistance | Cold die, blanking die, punches, molding tools |
| 1.3243 | M35 | SKH55 | W6Mo5Cr4V2Co5 | High wear & pressure resistance | Cold forging, stretch mold, cutting tools |
| 1.3247 | M42 | SKH59 | W6Mo5Cr4VCo8 | Good toughness, high hardness & wear resistance | Wear- & impact-resistant tooling |
| 1.3355 | T1 | SKH2 | W18Cr4V | High hardness, good hardenability & wear resistance | Cutting tools requiring hardenability |
| 1.7035 | 5140 | 40Cr | Good toughness & wear resistance after heat treatment | Stretch mold, small & medium punches | |
| 1.7337 | SCM415 | 15CrMo | High strength & toughness, good hardenability | Mechanical parts & die-casting mold | |
| 1.7218 | SCM420 | 20CrMo | High strength & toughness, good hardenability | Mechanical parts & die-casting mold | |
| 1.722 | 4130 | SCM430 | 30CrMo | High strength & toughness, good hardenability | Mechanical parts & die-casting mold |
| 1.7225 | 4140 | SCM440 | 42CrMo | High strength & toughness, good hardenability | Mechanical parts & die-casting mold |
| 1.5715 | 8620 | 20CrMo | Good hardenability, weldability & machinability | Automobile engine gears & drive systems | |
| 1.8159 | 6150 | SUF10 | 50CrVA | Good toughness after heat treatment | Springs for heavy-load mold, retainer & sprue |
| 1.6582 | 4340 | SNCM439 | 40CrNiMoA | Good hardenability, high strength & toughness | Quench-tempered high-strength parts |
| 1.8507 | SACM645 | 38CrMoAl | Good mechanical & nitriding property | Precision parts & shafts | |
| 100Cr6 | 52100 | SUJ2 | GCr15 | High hardness & fatigue strength | Precision parts, pins, guide pillars & bushings |
| 1.1730 | 1045 | S45C | 45# | Qualitative carbon steel, uniform structure, good wear & machinability | Various parts & shafts |
| 1.4035 | 303 | SUS303 | Y1Cr18Ni9 | Free-cutting stainless steel | Corrosion-resistant precision parts |
| 1.4301 | 304 | SUS304 | 0Cr18Ni9 | Austenitic stainless steel | Corrosion-resistant parts |
| 1.4125 | 440C | SUS440C | 9Cr18Mo | High-hardness martensitic stainless | Bearings, wear parts, precision components |
| 1.4021 | 420 | SUS420J1 | 2Cr13 | Martensitic stainless steel | Precision parts & shafts |
| 1.4006 | 410 | SUS410 | 1Cr13 | Martensitic stainless steel | Precision parts & shafts |
| 1.4028 | SUS420J2 | 3Cr13 | Martensitic stainless steel | Precision parts & shafts | |
| 1.4005 | 416 | SUS416 | Y1Cr13 | Free-cutting martensitic stainless | Magnetic-valve & electrical elements |
| 1.4029 | 420F | SUS420F | Y3Cr13 | Free-cutting martensitic stainless | Precision parts & shafts |
| 1.4104 | 430F | SUS430F | Y3Cr13 | Free-cutting ferritic stainless | Precision parts & shafts |
| 1.4016 | 430 | SUS430F | 1Cr17 | Ferritic stainless steel | Corrosion-resistant parts |
| 1.4057 | 431 | SUS431 | 1Cr17Ni2 | Martensitic stainless steel | High-strength corrosion-resistant parts |

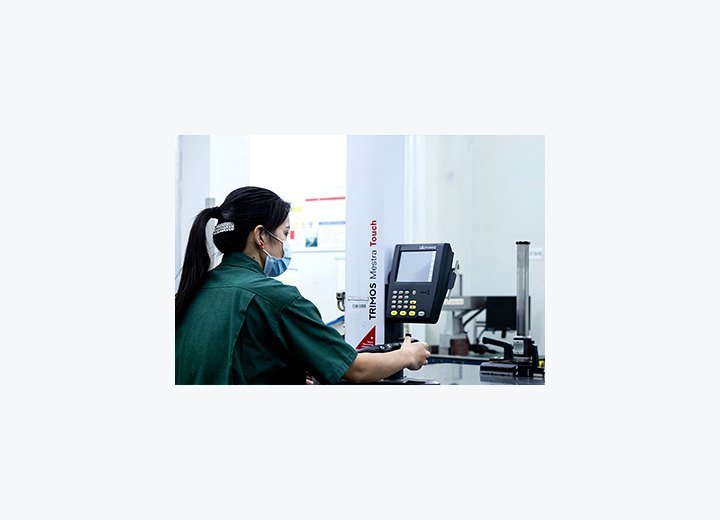

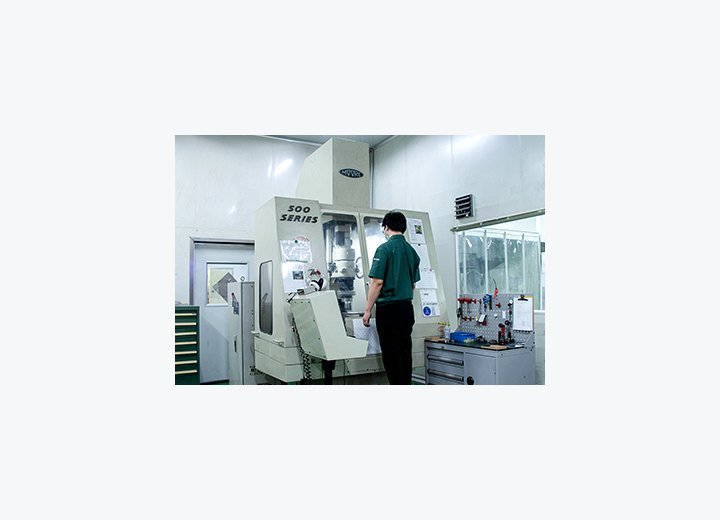

Machining & inspection capacity you can rely on
CNC machining centres, EDM, precision grinding and a temperature-controlled metrology room — the equipment behind repeatable, high-end custom parts.
Every critical dimension, verified
High-end custom parts demand evidence, not assurances. Our multi-stage QC and metrology room back every shipment with objective data.
Full inspection reports
Dimensional reports, material certificates and hardness records supplied with every order on request.
Multi-stage QC
IQC on incoming material, IPQC during machining and OQC before shipment keep dimensions and appearance stable.

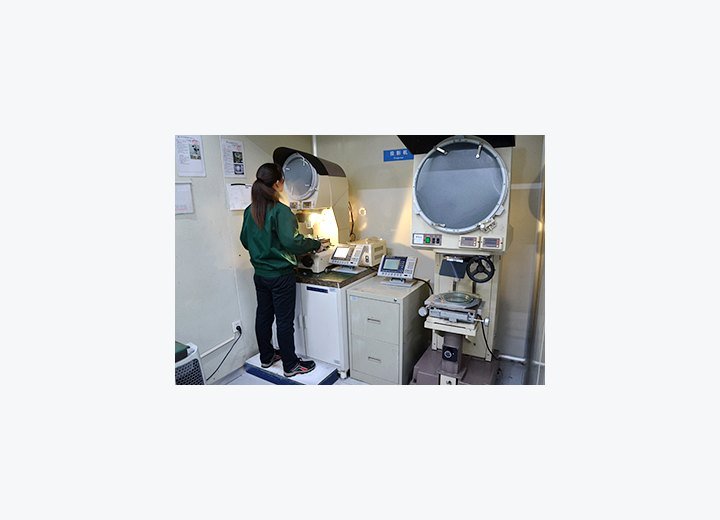

Metrology equipment
CMM, optical projector, height gauge, hardness tester and surface-roughness tester for objective verification.
Traceability & NDA
Lot traceability on request and confidentiality agreements to protect your drawings and IP.
Trusted across demanding industries
From mould makers and stampers to automotive, medical and electronics OEMs — wherever precision and reliability matter.
Get a quote in 24 hours
Send your drawing, sample, reference code or target dimensions. We’ll confirm feasibility, recommend material and coating, and quote price and lead time — fast.
Send your drawing or sample — 2D/3D, photo or reference code
Get quote & DFM feedback — material, price & lead time within 24h
Approve & we produce — machined, inspected & shipped worldwide
Custom manufacturing FAQ
The questions buyers ask most before starting a custom or replacement order.
Can you manufacture custom parts directly from my drawings or samples?
Yes. Send a 2D/3D drawing, a physical sample or even a reference code. Our engineers review material, tolerance and manufacturability, then quote a made-to-drawing part. If information is missing, we ask precise questions before production.
What is your minimum order quantity (MOQ)?
MOQ starts from a single piece. We regularly produce one-off replacement parts, prototypes and trial runs, as well as scheduled series production.
Is your price really lower than Europe, Japan or Korea?
In most cases yes — typically 20-40% lower for the same specification — because we manufacture in-house in China with an efficient supply chain, while still using certified materials, proper heat treatment and full inspection.
How fast can you deliver?
Lead time depends on complexity and quantity. Rush replacement parts can ship in days; standard custom parts usually take 1-3 weeks. We reserve capacity for planned series so your schedule stays predictable.
Which materials and coatings can you work with?
Tool steels (H13, D2, P20, S7, DIN 1.2344 / 1.2379 and more), tungsten carbide, HSS, stainless steel, copper alloys and engineering plastics; coatings include DLC, TiN, TiCN, AlTiN, CrN, nitriding and hard chrome. See the material and coating tables above.
How do you guarantee quality on high-end custom parts?
Every job runs through DFM review, in-process control and final CMM inspection. We supply dimensional, material and hardness reports on request and stand behind the parts we ship.
Will my drawings and design stay confidential?
Yes. We treat customer drawings as confidential and are glad to sign an NDA before you share sensitive files.
What are your payment terms and shipping options?
Flexible terms for qualified business accounts. We ship worldwide by express, air or sea freight with rust-preventive protective packing, and can work with your forwarder if preferred.
